Page 367 - Zetor Forterra II 8641-11741
P. 367

HYDRAULICKÉ ZAŘÍZENÍ - HYDRAULISCHE ANLAGE - HYDRAULIC SYSTÉM - EQUIPEMENT HYDRAULIQUE - EQUIPO HIDRÁULICO
                                                           446a
                                                           291

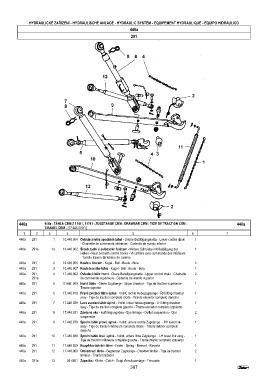

         446a        446a - TÁHLA CBM Z 11441, 11741 - ZUGSTANGE CBM - DRAWBAR CBM - TIGE DE TRACTION CBM -  446a
                     TIRANTE CBM - (17.446.000/1)
           1     2     3       4                            5                         6               7
         446a  291       1   10.446.904 Ovládací řetěz spodních táhel - Untere Betätigungskette - Lower control chain  1
                                     - Chainette de commande inférieure - Cadenita de mando inferior
         446a  291a     1a   10.446.902 Šroub zadní s ovládacím řetězem - Hintere Schraube mit Betätigung der  1
                                     Haken - Rear bolt with control hooks - Vis arríere avec commande des inferieurs
                                     - Tornillo trasero de toblero de cadeno
         446a  291       2   10.446.905 Koule s límcem - Kugel - Ball - Boule - Bola    2
         446a  291       3   10.446.907 Koule horního táhla - Kugel - Ball - Boule - Bola  1
         446a  291,      4   17.446.902 Ovládací řetěz horní - Obere Betätigungskette - Upper control chain - Chainette  2
               291a                  de commande supérieure - Cadenita de mando superior
         446a  291       5   17.446..909 Horní táhlo - Obere Zugstange - Upper drawbar - Tige de traction supérieure -  1
                                     Tirante superior
         446a  291       6   17.446.919 Pravé zvedací táhlo úplné - Vollst. rechte Hebezugstange - RH lifting drawbar  1
                                     assy - Tige de traction complete droite - Tirante elevador completo derecho
         446a  291       7   17.446.929 Levé zvedací táhlo úplné - Vollst. linke Hebezugstange - LH lifting drawbar  1
                                     assy - Tige de traction complete gauche - Tirante elevador completo izquierdo
         446a  291       8   17.446.931 Závěsné oko - Aufhängungsöse - Eye linkage - Oeillet suspension - Ojal  2
                                     suspensión
         446a  291       9   17.446.979 Spodní táhlo pravé  úplné - Vollst. untere rechte Zugstange  - RH lower link  1
                                     assy - Tige de traction inférieure compléte droite - Tirante inferior completo
                                     derecho
         446a  291      10   17.446.989 Spodní táhlo levé  úplné - Vollst. untere linke Zugstange  - LH lower link assy -  1
                                     Tige de traction inférieure compléte gauche - Trante inferior completo izquierdo
         446a  291      11   17.446.959 Rozpěrka dolních táhel - Feder - Spring - Ressort - Resorte  1
         446a  291      12   17.446.969 Omezovací táhlo - Begrenzer Zugstange - Drawbwr limiter - Tige de traction  2
                                     limiteur - Tirante limitador
         446a  291a     13     93-4601 Západka - Klinke - Catch - Doigt d’encliquentage - Trinquete  1
